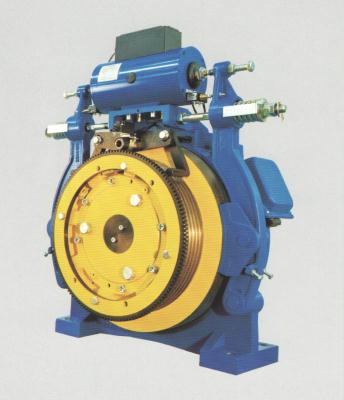

DAA20220T曳引机
点击放大
产品名称：DAA20220T曳引机
公司名称：奥润科技
产品型号：DAA20220T无齿轮曳引机
产品简介：重量：430Kg，悬挂比：2：1，最大轴载荷：3000Kg，额定载重：630-1000Kg，防护等级：IP41，绝缘等级：F。
详细说明
|
Load
Kg |
Speed
m/s |
Rotate Speed R.P.M |
Rated Frequency Hz |
Rated Torque N.m |
Rated Power Kw |
Rated Voltage V |
Rated Current A |
Sheave Diameter mm |
Groove
No. |
Rope Diameter mm |
|
630 |
1 |
96 |
16 |
460 |
4.6 |
513 |
6.1 |
400 |
4 |
10 |
|
1 |
96 |
16 |
460 |
4.6 |
380 |
10.4 |
||||
|
1.5 |
144 |
24 |
460 |
6.9 |
513 |
10.5 |
||||
|
1.5 |
144 |
24 |
460 |
6.9 |
380 |
17.8 |
||||
|
1.75 |
168 |
28 |
460 |
8.1 |
513 |
10.5 |
||||
|
1.75 |
168 |
28 |
460 |
8.1 |
380 |
17.8 |
||||
|
800 |
1 |
96 |
16 |
550 |
5.5 |
513 |
7.2 |
|||
|
1 |
96 |
16 |
550 |
5.5 |
380 |
12.5 |
||||
|
1.5 |
144 |
24 |
550 |
8.3 |
513 |
12.6 |
||||
|
1.5 |
144 |
24 |
550 |
8.3 |
380 |
20.6 |
||||
|
1.75 |
168 |
28 |
550 |
9.7 |
513 |
12.6 |
||||
|
1.75 |
168 |
28 |
550 |
9.7 |
380 |
20.6 |
||||
|
1000 |
1 |
96 |
16 |
665 |
6.7 |
513 |
8.8 |
5/6 |
||
|
1 |
96 |
16 |
665 |
6.7 |
380 |
14.9 |
||||
|
1.5 |
144 |
24 |
665 |
10 |
513 |
15.2 |
||||
|
1.5 |
144 |
24 |
665 |
10 |
380 |
24.3 |
||||
|
1.75 |
168 |
28 |
665 |
11.7 |
513 |
15.2 |
||||
|
1.75 |
168 |
28 |
665 |
11.7 |
380 |
24.3 |
